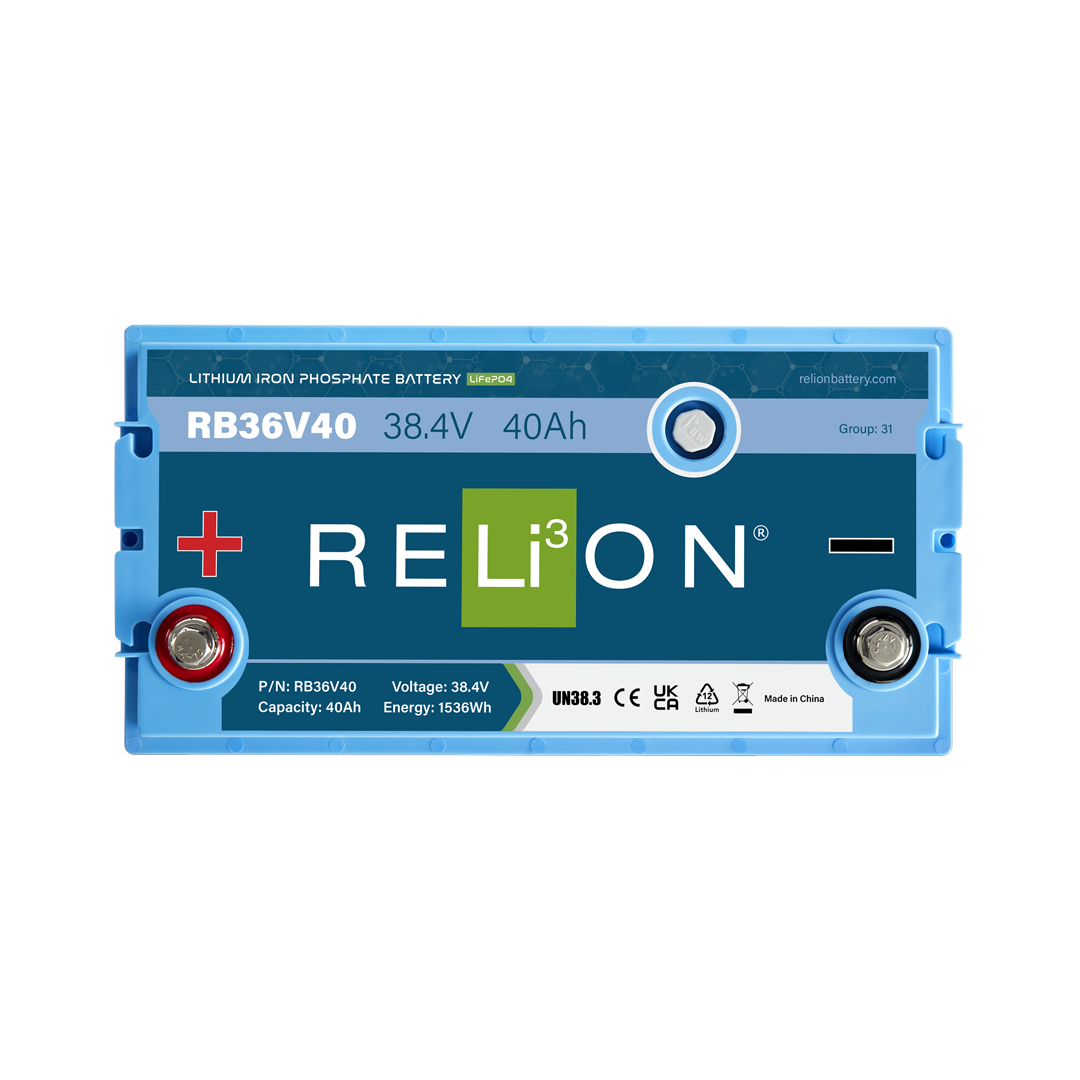

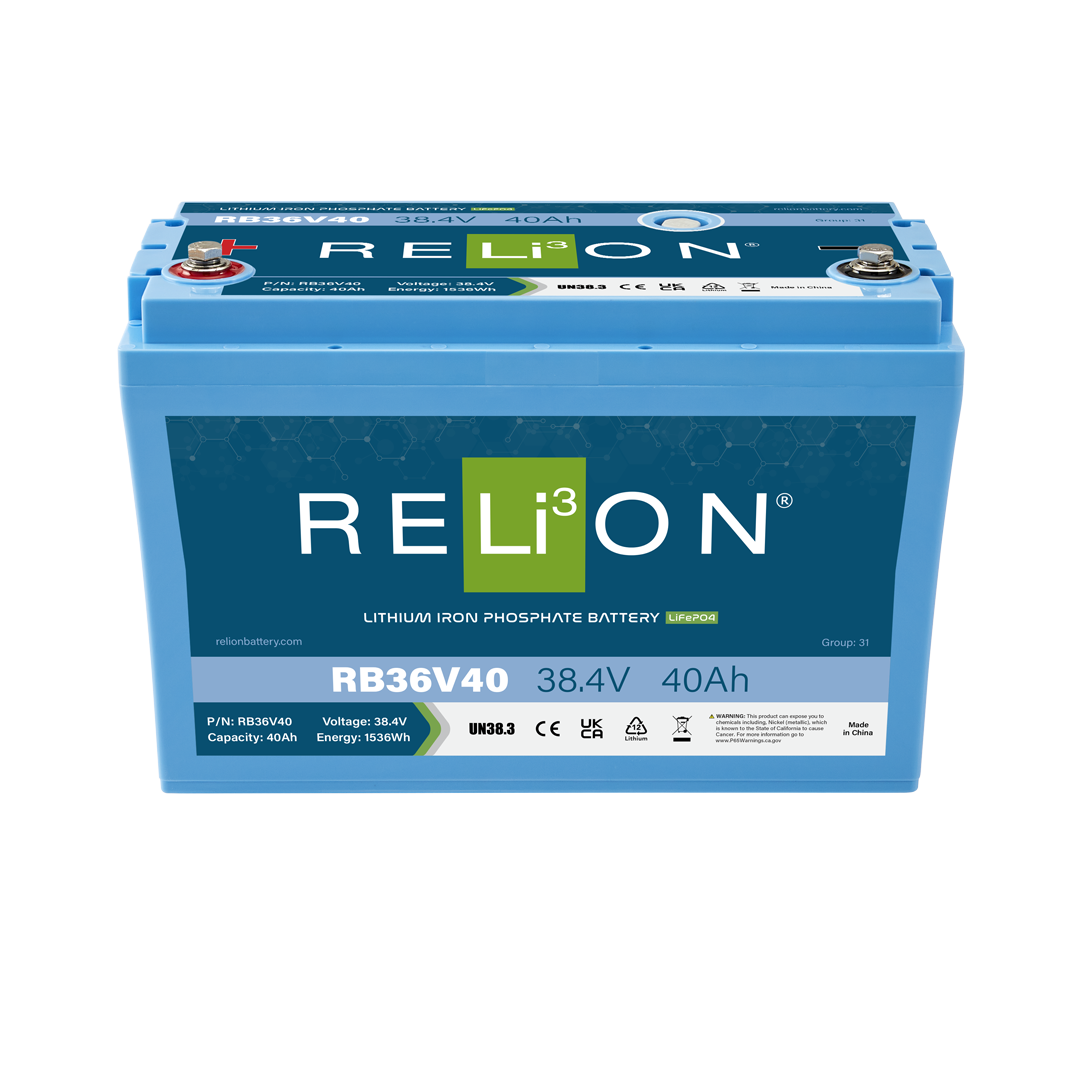

RB36V40
36V 40Ah
Lithium Deep Cycle Battery
Group 31
RB36V40
36V 40Ah
Lithium Deep Cycle Battery
Group 31
Fish all day with 36V lithium power! The RB36V40 is a durable and long-lasting 36V lithium iron phosphate power source designed specifically for marine use. The parallel design brings a simpler set-up and more capacity, keeping you out on the water for longer.
$1,089.95
ENGINEERED IN THE USA
US-BASED SUPPORT
10 YEAR WARRANTY
Features
Simpler Set-Up
Get max voltage with minimum hassle thanks to the RB36V40’s parallel set-up. The improved connectors and small footprint make on-board installation a breeze, while the battery’s low weight means you’ll never sacrifice speed through the water.
Longer Lasting
The parallel set-up means quicker and easier charging, but it also means there’s more in the tank when you need it. The RB36V40 offers 20% greater capacity than its series equivalent*, translating to enhanced run times to keep you out on the water for longer. *Based on 3 @ 40Ah in parallel vs 3 @ 12V 100Ah in series
Marine-Optimized
The RB36V40 is built for the marine environment. You'll get year-round peace of mind with the newly enhanced case, featuring an IP67 waterproof rating, and a new glue channel and screw-latched enclosure to protect against airborne contaminants.
Suitable For Commercial Use
The benefits of parallel power translate equally well to various commercial applications. For example, the battery’s increased capacity, faster charge time, and reduced downtime and maintenance costs make it ideal for use in floor cleaning settings.
Specifications
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 38.4 V |
| Nominal Capacity | 40 Ah |
| Capacity @ 25 A | 96 min |
| Resistance | ≤50 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Series Connections | No. 36V system only. |
| Parallel Connections | Unlimited |
DISCHARGE SPECIFICATIONS |
|
|---|---|
| Maximum Continuous Discharge Current | 50 A |
| Peak Discharge Current | 175 A (7.5 s ±2.5 s) |
| Discharge Over-Current Protection | 200A +/- 35A (100 +/- 50ms ) |
| Recommended Low Voltage Disconnect | 30.0 V |
| Discharge Under-Voltage Protection | 27.6 V (2.3 ±0.01 vpc) |
| Reconnect Voltage | 30.0 V (2.5 ±0.08 vpc) |
| Short Circuit Protection Response Time | 200-800 μs |
TEMPERATURE SPECIFICATIONS |
|
|---|---|
| Discharge Temperature | -4 to 140 oF (-20 to 60 oC) |
| Charge Temperature* | -4 to 113 oF (-20 to 45 oC) |
| Recommended Storage Temperature | 23 to 95 oF (-5 to 35 oC) |
| High Temperature Cut-Off | 167 oF (75 oC) |
| Reconnect Temperature | 149 oF (65 oC) |
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 13 x 6.8 x 8.4”329 x 172 x 214.7 mm |
| Weight | 30.9 lbs (14 kg) |
| Terminal Type | M8 x 1.25 x 12 mm |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS & PC blend (UL94-V0 flame rating) |
| Enclosure Protection (Waterpoof Rating) | IP67 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
CHARGE SPECIFICATIONS |
|
|---|---|
| Recommended Charge Current | 4 A – 20 A |
| Maximum Continuous Charge Current | 40 A |
| Charge Current 14 to 32 oF (-10 to 0 oC) | ≤0.1 C (4 A) |
| Charge Current -4 to 14 oF (-20 to -10 oC) | ≤0.05 C (2 A) |
| Recommended Charge Voltage | 42.6 V - 43.8 V |
| BMS Charge Voltage Cut-Off | 46.2 V (3.85 ±0.025 vpc) |
| Reconnect Voltage | 43.8 V (3.65 ±0.05 vpc) |
| Balancing Voltage | 41.7 V (3.475 vpc) |
COMPLIANCE SPECIFICATIONS |
|
|---|---|
| Certifications | UN38.3, CE & UKCA (battery) UL1642 (cells)IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |

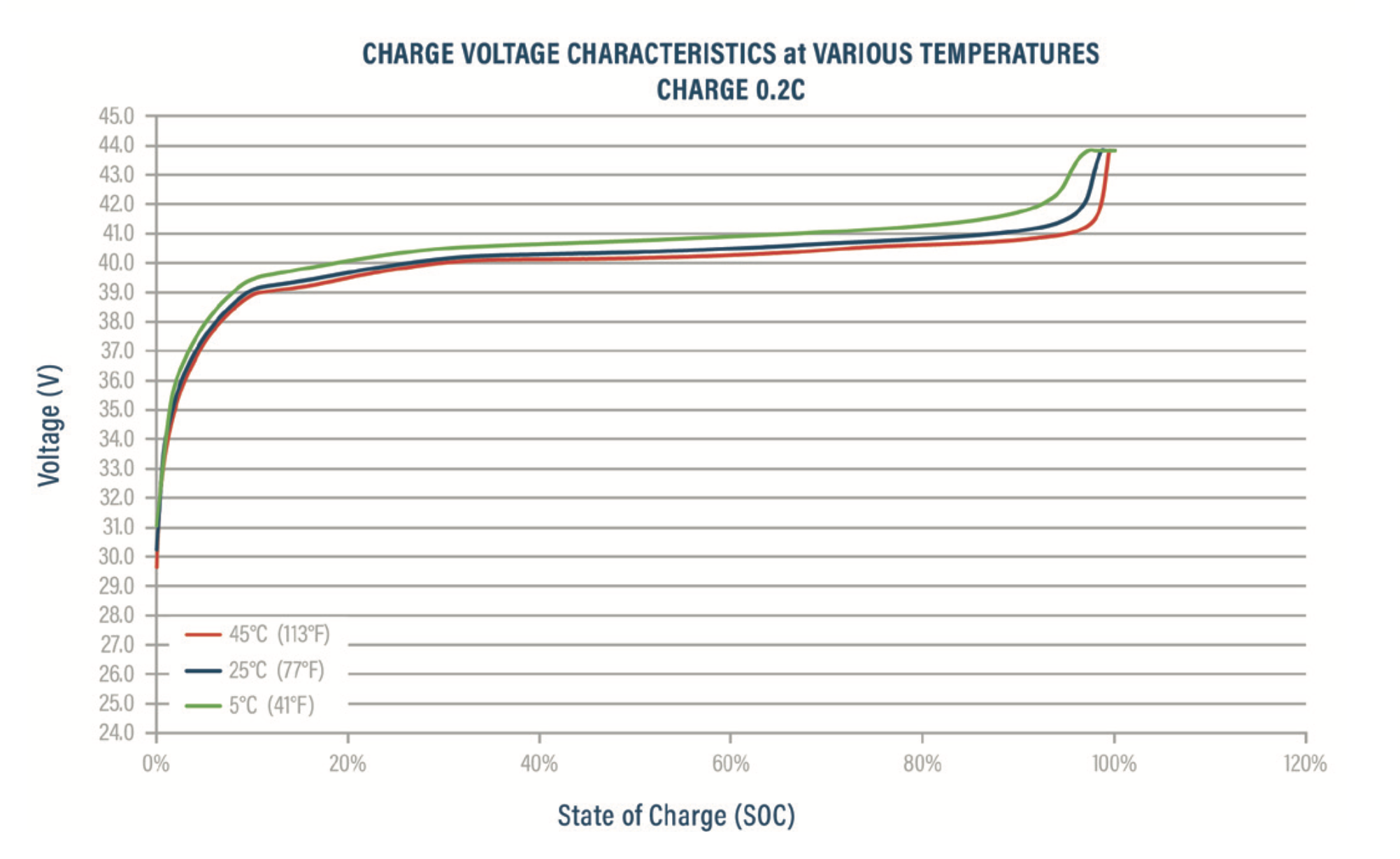

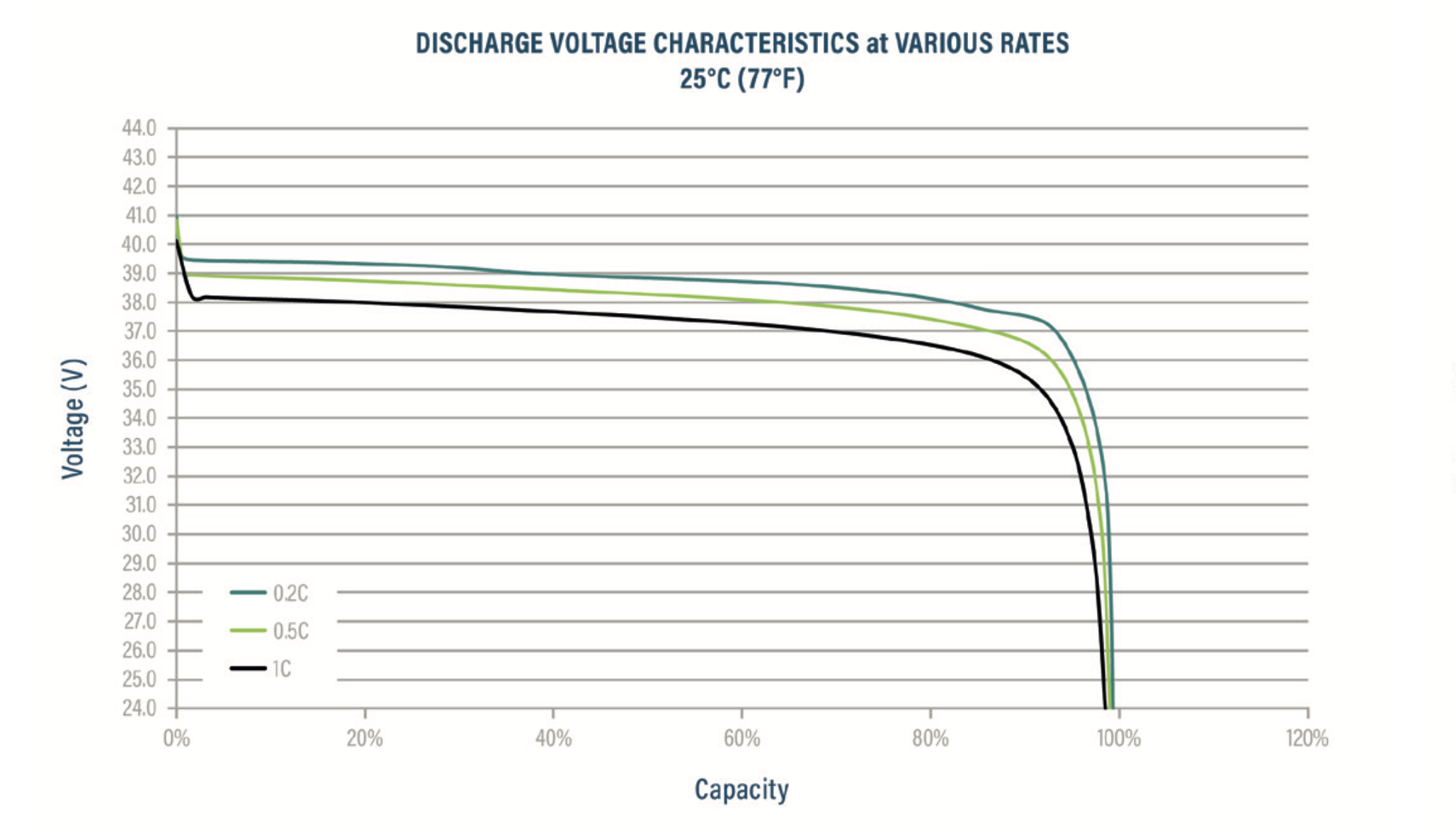

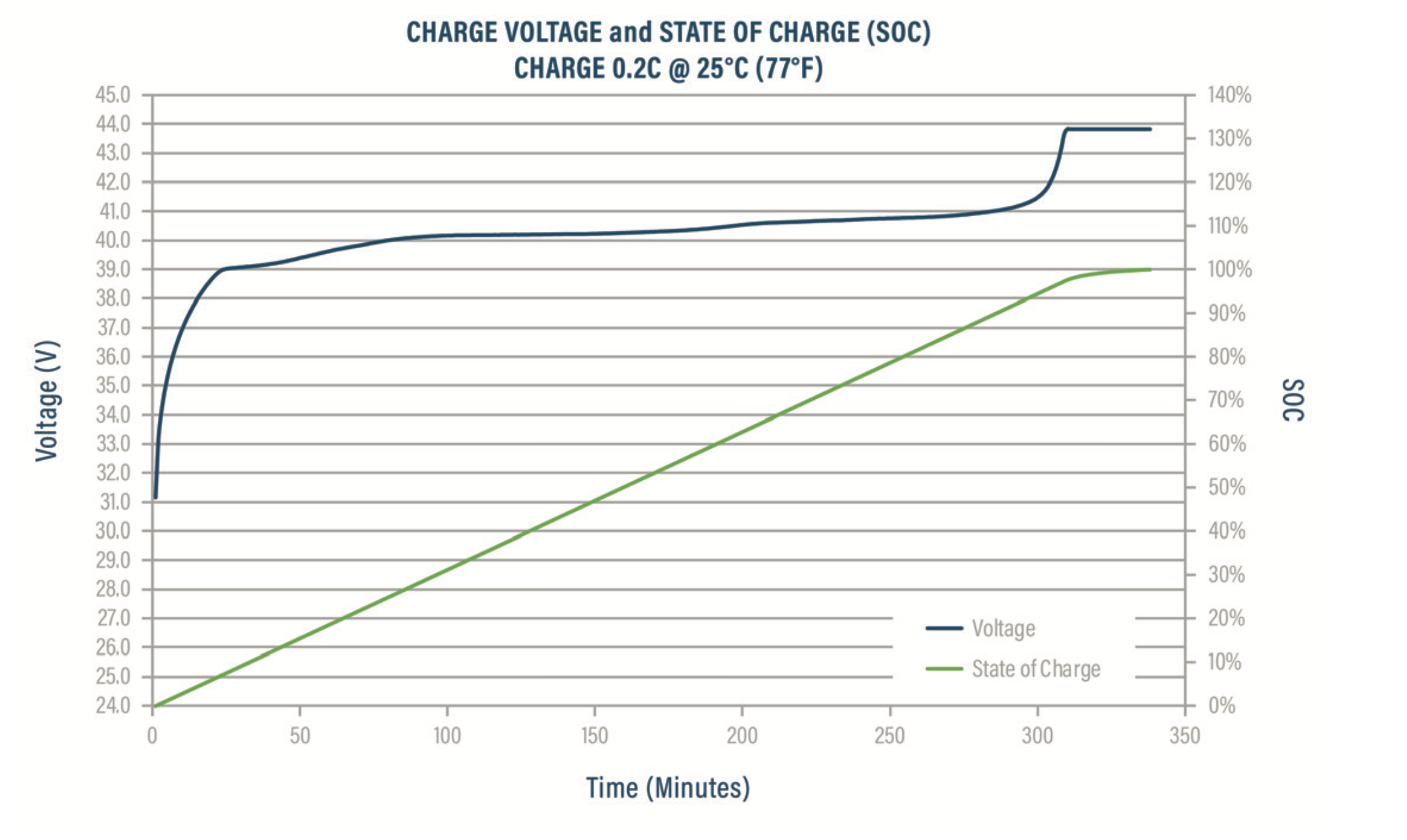

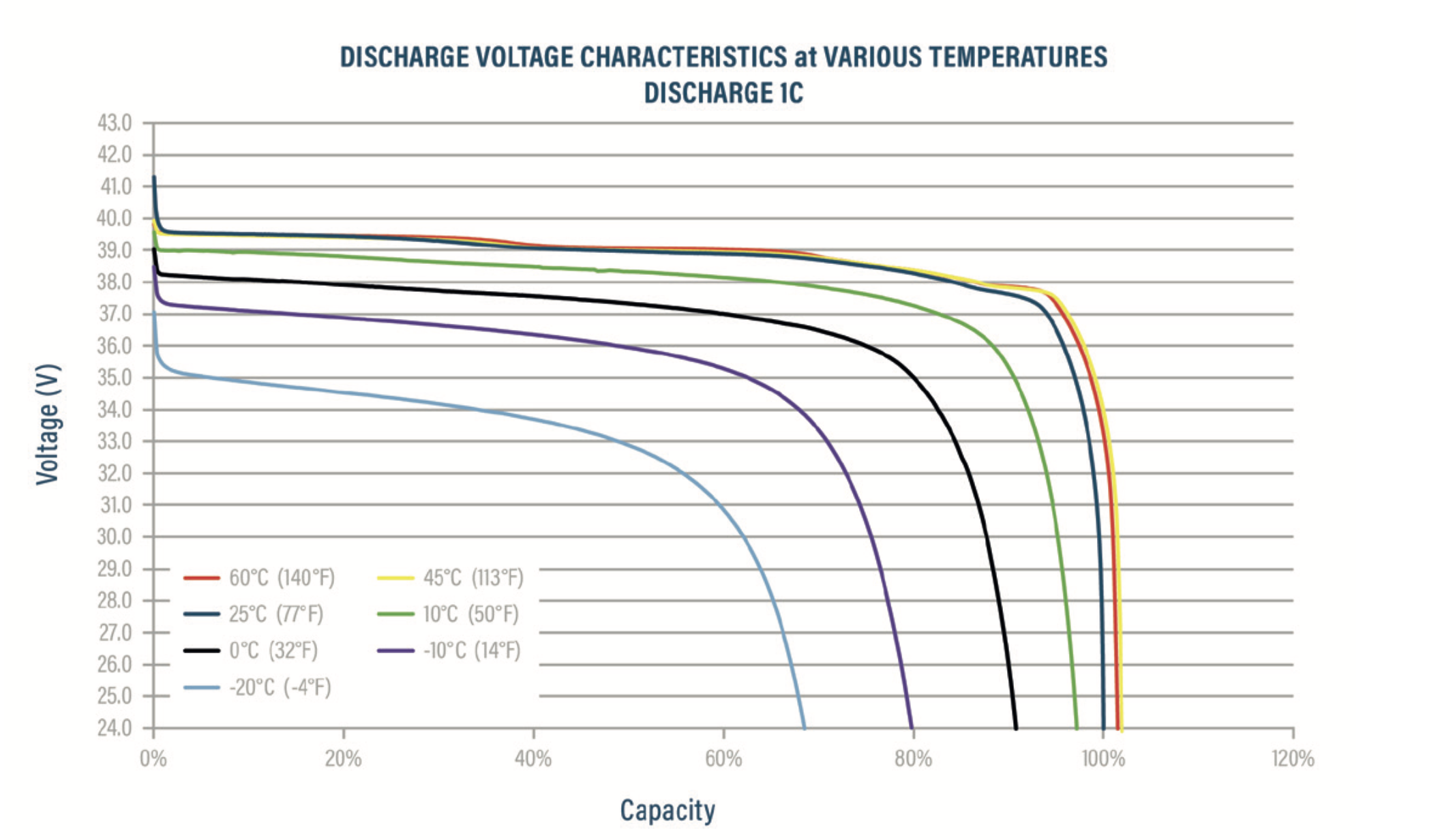

TYPICAL LITHIUM IRON PHOSPHATE CHARACTERISTICS
Reviews
Documentation
Frequently Asked Questions
The RB36V40 Is Great For Powering
Marine
Floor Machines
Frequently Asked Questions About Trolling Motor Batteries
We explain why lithium batteries are so valuable for trolling motors and answer the most commonly asked battery questions for trolling motor applications.
The Perfect Battery Setup for Your Trolling Motor
Pro angler Andrew Upshaw tells you why the RELiON 36V lithium trolling motor batteries are the perfect setup for your boat.

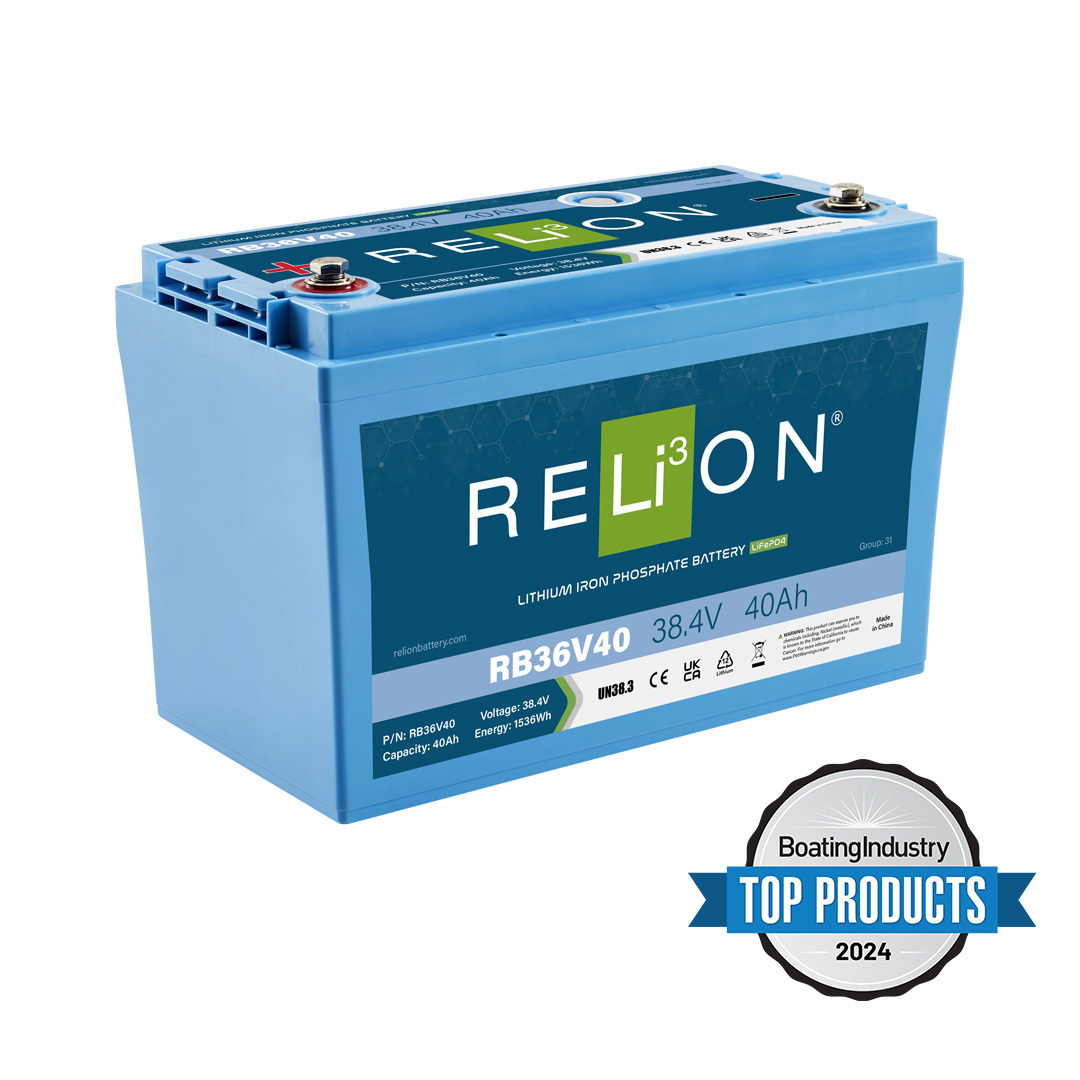

RELiON® RB36V40 Lithium Battery Wins 2024 Boating Industry Top Products
