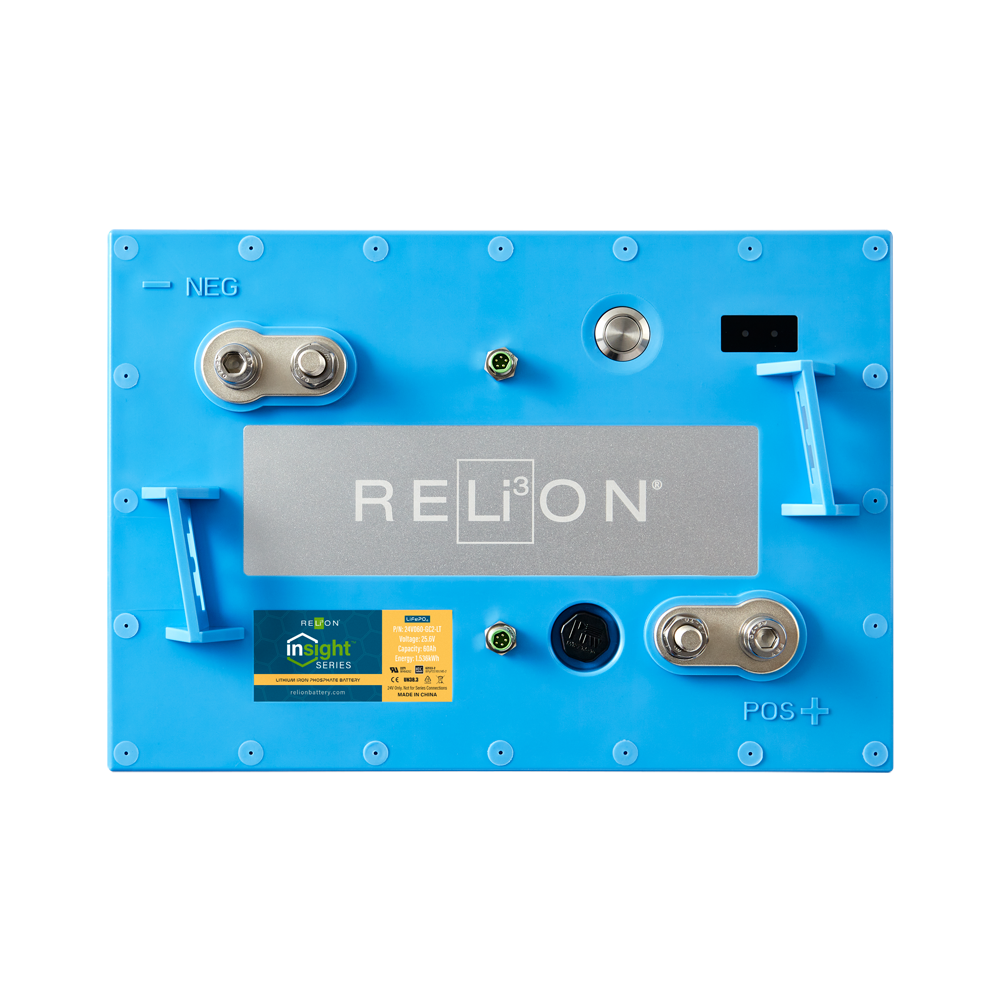

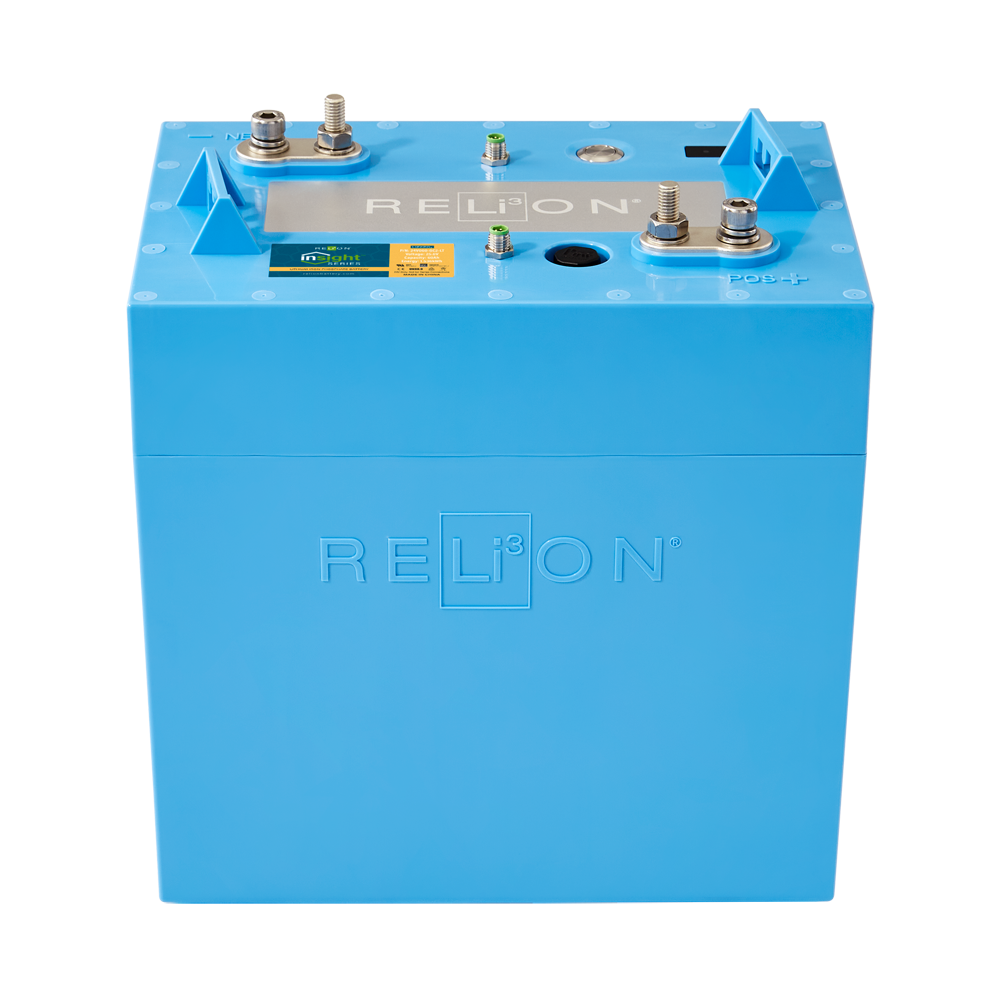

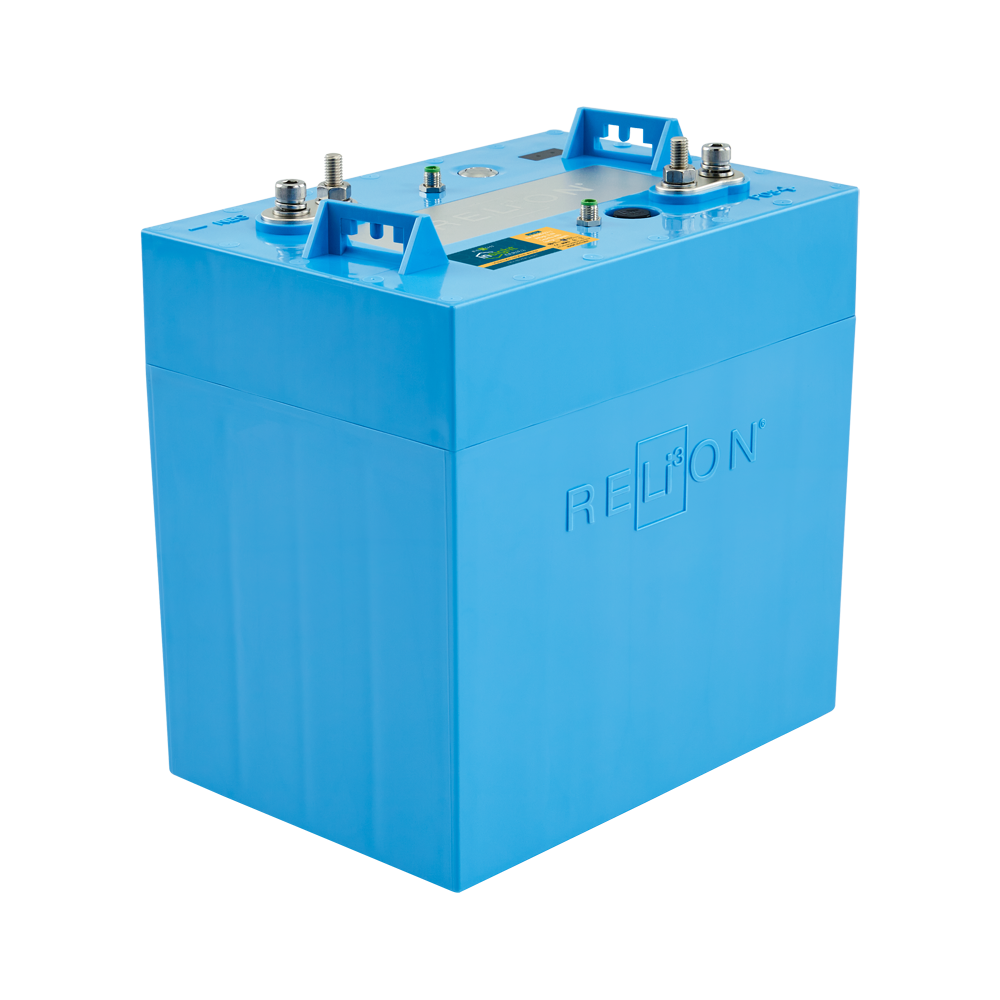

InSight Series® 24V-LT

24V 60Ah
Cold Weather Deep Cycle Lithium Battery
Group Size GC2/GC8

InSight Series® 24V-LT

24V 60Ah
Cold Weather Deep Cycle Lithium Battery
Group Size GC2/GC8

Built specifically to meet the power and energy requirements in material handling equipment, solar, automated guided vehicles and freezer equipment applications, the InSight 24V-LT outputs 100A continuous and offers higher peak discharge. Plus, with the LT technology, it can safely charge at temperatures down to -20°C (-4°F) which makes it ideal in cold weather applications.

$1,249.95

FIND A DEALER

Seach our global network of RELiON dealers for sales or service

DEALER LOCATOR

BUY ONLINE

Visit Del City for secure online shopping and free shipping

Us Flag Small

ENGINEERED IN THE USA

United States Of America White 230216 103954

US-BASED SUPPORT

Warranty White 230216 103954

10 YEAR WARRANTY

Features

Cold Weather Ready

Featuring our Low Temperature Series (LT) technology, the InSight 12V battery can safely charge at temperatures down to -20°C (-4°F).

Easy Installation

InSight batteries come in BCI group size GC2/GC8 allowing for easy installation without modifying trays or battery compartments.

Scalable System

InSight batteries offer freedom and flexibility by utilizing parallel connections, so you can scale your system to provide increased power and energy (up to 300Ah) as needed.

Intelligent Cooling

InSight Series® uses a carefully engineered cooling management system to quickly remove heat from inside the battery during conditions of high discharge and recharge currents. This prevents overheating of critical components and extends the life of the battery.

Super Smart BMS

The robust Battery Management System features a combined total of 48 charge and discharge MOFSETs that control current flow in and out of the battery, along with multilayer protective devices that prevent over/under voltage, current and temperature conditions. The multilayer protection allows InSight batteries to pass stringent UL safety standards.

Robust Communication

CANbus connections allow batteries to communicate real-time operating statistics like the voltage, current, state of charge and state of health, making InSight batteries more user friendly. Plus, all batteries feature a sleep and pulse recovery operation mode to conserve power.

Specifications

DOWNLOAD PDF

FUNCTIONAL SPECIFICATIONS

Nominal Voltage 25.6
Cell Chemistry LiFePO4
Cell Type Prismatic
Ampere-hour Capacity 60Ah
Watthour Capacity 1.536kWh
Specific Energy 128Wh/kg
Charge Efficiency 99%
Impedance (50% SOC, 1kHz) <100mΩ
Cycles @ 80% DOD >3500
Parallel Capable Yes (unlimited)
Series Capable No (max 24V system)

MECHANICAL SPECIFICATIONS

BCI Size GC2 / GC8
Dimensions (LxWxH) 10.2 x 7.1 x 10.9 in (260x180x276mm)
Weight 34.4 lbs (15.6 kg)
Case Material ABS
Stud Terminal M8 X 1.25 - 20
Insert Terminal M8 X 1.25 - 20
Torque 79.7-88.5 in-lbs. 6.6 - 7.4 ft-lbs. 9-10 N-m
Handles Molded
Ingress Protection Marking IP67
Case Flame Rating UL94 V-0

DISCHARGE SPECIFICATIONS

Continuous Discharge Current 100A
Peak Discharge Current 240A - 15 sec
Peak Discharge Current 440A - 30 msec
Short Circuit Protection 880A - 610 μsec
Protection Recover Automatic
Low Voltage Disconnect 20V - 5 sec (2.5vpc)
Low Voltage Reconnect Automatic
Self-Discharge perMonth @ 25°C in OFF mode 2.80%

CHARGE SPECIFICATIONS

Continuous Charge Current ≤ 60A
Disconnect Charge Current 65A - 5 sec
Recommended Charge Voltage 27.6V
Float Voltage 27.2V
High Voltage Disconnect 29.6V (3.7vpc) (4 sec)
High Voltage Reconnect Automatic
Temperature Compensation None
Heating Element Nominal Power 135W
Heating Rate (nominal) 20°C/hr (35°F/hr)

ENVIRONMENTAL SPECIFICATIONS

Charge Temperature 32°F to 131°F (0°C to 55°C)
Discharge Temperature -4°F to 149°F (-20°C to 65°C)
Operating Humidity <90% RH
Storage Temperature 50°F to 95°F (10°C to 35°C)
Storage Humidity 25 to 85% RH

CERTIFICATIONS

UL2580 (Cell) File Number: MH63797
UL2271 (Battery Pack) File Number: MH64262
CE (Battery Pack)
IEC 62133 (Battery Pack)
UN38.3 (Battery Pack)

SHIPPING CLASSIFICATION

UN 3480, Class 9

TYPICAL LITHIUM IRON PHOSPHATE CHARACTERISTICS

Discharge Voltage Chart 24 V graph
Discharge Voltage At Various Rates 24 V graph
Charge Voltage Soc Chart 24 V graph
Charge Voltage Char Chart 24 V graph
Cycle Life Vs Depth Discharge Chart graph
Life Vs Lead Acid Chart graph

Reviews

There are no reviews for this product yet.

Frequently Asked Questions

Can InSight batteries be connected in parallel or series?
RELiON’s InSight batteries were designed exclusively to run in parallel. Because they are in parallel, if any one battery goes offline, you will not notice any difference in performance, only duration. A parallel connection extends the reliability of each individual Insight battery to the entire array, giving you more power, more capacity, and less to worry about.
How does the heating element work?
The battery management system monitors the internal temperature of the battery. If the temperature drops below 32°F (0°C) and a charge cycle is initiated, the BMS will divert charge current to the heating element until the uniform internal temperature of the battery is safe for charging. The specific safe charging temperature differs. For small batteries it's 50°F (10°C), for larger batteries it's 41°F (5°C). See individual data sheets for details.
How long does the heating element take to warm the battery to a safe temperature?
Depending on how cold it is and which model of battery, the BMS will divert 5-15 amps of charge current to the heating element. The heating rate for the InSight 12V battery is 5⁰C per hour.
Does the heating element keep the battery warm during discharging also?
No, during discharge the heating element remains off. The battery will function according to the discharge voltage characteristics at various temperatures chart. It is perfectly safe to discharge in temps down to -4°F (-20°C).
How many amps does the heating element draw?
Depending on battery model, the BMS diverts 5-15 amps to power the heating element.
How can I determine the state of charge (SOC) of my InSight battery?

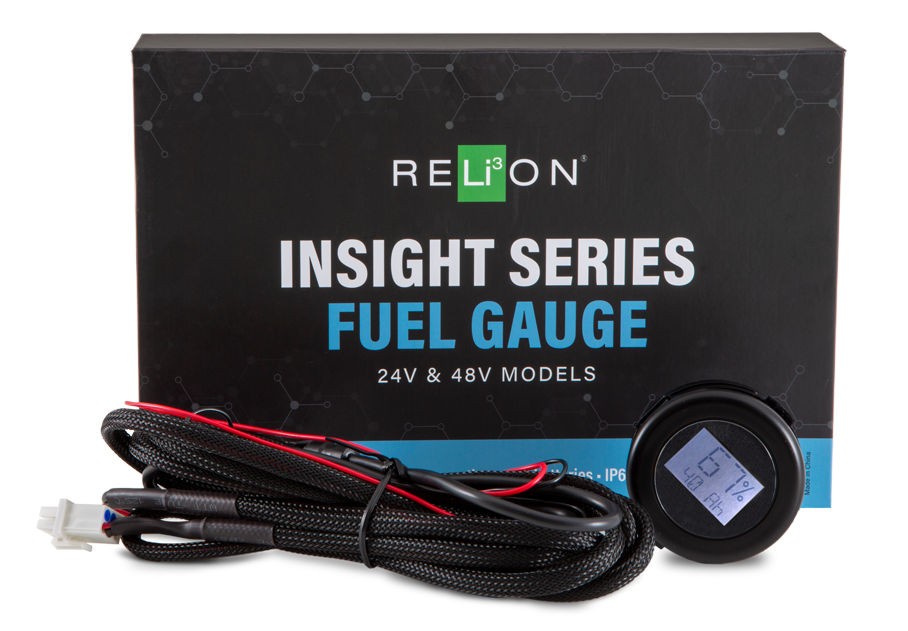

We recommend using a shunt-based fuel gauge to measure SOC with the InSight Battery. This type of fuel gauge accurately measures the discharge/recharge currents and calculates the Ampere-hours (Ah) flowing in and out of the battery. The LEDs on the battery will also indicate the SOC: 95% - 100% Solid Green Solid Green 75% - 95% Solid Green Flashing Green (every ½ sec.) 50% - 75% Solid Green Solid Yellow 30% - 50% Solid Green Flashing Yellow (every ½ sec.) 10% - 30% Solid Green Solid Red 0 - 10% Solid Green Flashing Red (every ½ sec.)
How do I charge InSight batteries?
It is best to use/select a Lithium, AGM or GEL charge profile in that order of availability. Consult your manual or charger manufacturer for directions on this capability. Spot check the battery SOC LED indicators with a quick press and release of the battery Power Button. Chargers typically display a solid Green Light when the charge is completed, and a flashing green light when the battery is near the end of charge (will vary by charger). Both conditions may or may not occur depending on your charger design. Neither condition is necessarily required to properly achieve a full recharge.
Is there a way to turn the batteries on and off without accessing the battery compartment?
The InSight Series Remote Button gives you the convenience to power on and off your InSight Series batteries without having to access the battery compartment. This high-quality plug-and-play accessory saves you time and energy.
