Redefining What's Possible with Lithium

Designed from the ground up around a state-of-the-art battery management system (BMS), RELiON’s InSight Series® LiFePO4 batteries include all the features that make lithium batteries a superb choice, but with unmatched built-in intelligent features included.

https://ceb8596f236225acd007-8e95328c173a04ed694af83ee4e24c15.ssl.cf5.rackcdn.com/misc/_zPattern/Brain.jpg

SuperSmart BMS

The BMS is the most critical component in a lithium battery. A well-designed BMS protects and monitors a lithium battery to optimize performance, maximize life, and ensure safe operation over a wide range of conditions. InSight Series® batteries feature a one-of-a-kind BMS that hosts intuitive software, providing Bullseye Balancing™ balancing within a battery and between batteries in a parallel system without the need for charging batteries individually.

https://ceb8596f236225acd007-8e95328c173a04ed694af83ee4e24c15.ssl.cf5.rackcdn.com/misc/_zPattern/Bullseye.jpg

Bullseye Balancing™

The innovative algorithms within InSight's SuperSmart BMS provides precise balancing within a battery and between batteries in a parallel system without the need for charging batteries individually. This optimizes performance, providing maximum capacity and life.

https://ceb8596f236225acd007-8e95328c173a04ed694af83ee4e24c15.ssl.cf5.rackcdn.com/misc/_zPattern/Temperature.jpg

Intelligent Cooling

Unlike other lithium batteries that can trap heat, the InSight Series uses a carefully engineered cooling management system to quickly remove heat from inside the battery during conditions of high discharge and recharge currents. This prevents over-heating of critical components, which also extends the life of the battery.

https://ceb8596f236225acd007-8e95328c173a04ed694af83ee4e24c15.ssl.cf5.rackcdn.com/images/product/_zPattern/InSight-Left.png

InSight 48V Battery - Now Available!

$1,214.96

Our InSight 48V LiFePO4 battery was designed specifically to meet the power and energy needs in all types of golf cars, utility vehicles, AGVs and LSVs. It's a 48V 30Ah lithium battery that is a standard golf-sized battery, so there are no tray modifications needed. Not only does it fit like a glove, but the one-of-a-kind battery management system hosts an intuitive software, providing Bullseye Balancing™ between batteries, seamlessly manages regenerative currents and avoids unnecessary disconnects. Take advantage of the easy installation and precision performance that comes with the InSight 48V battery.

Learn More

INSIGHT DESIGN FEATURES

Heatsink

High demand applications often require high currents. With InSight’s strategically placed heatsink you can run at high currents without compromising the life of your battery or BMS.

LED Status Indicators

InSight Series® batteries include LED indicators to show the state of charge and battery status. Ideal for assessing battery status at a glance.

Advanced Communication

Each RELiON InSight Series® battery includes built-in CANbus communication that provides manufacturing, application, and historical data. In OEM applications, the battery can communicate with the motor controller.

Wakeup Button

A wakeup button, located next to the LED Status Indicators, is used to activate, request the SOC, reset, and turn off the battery.

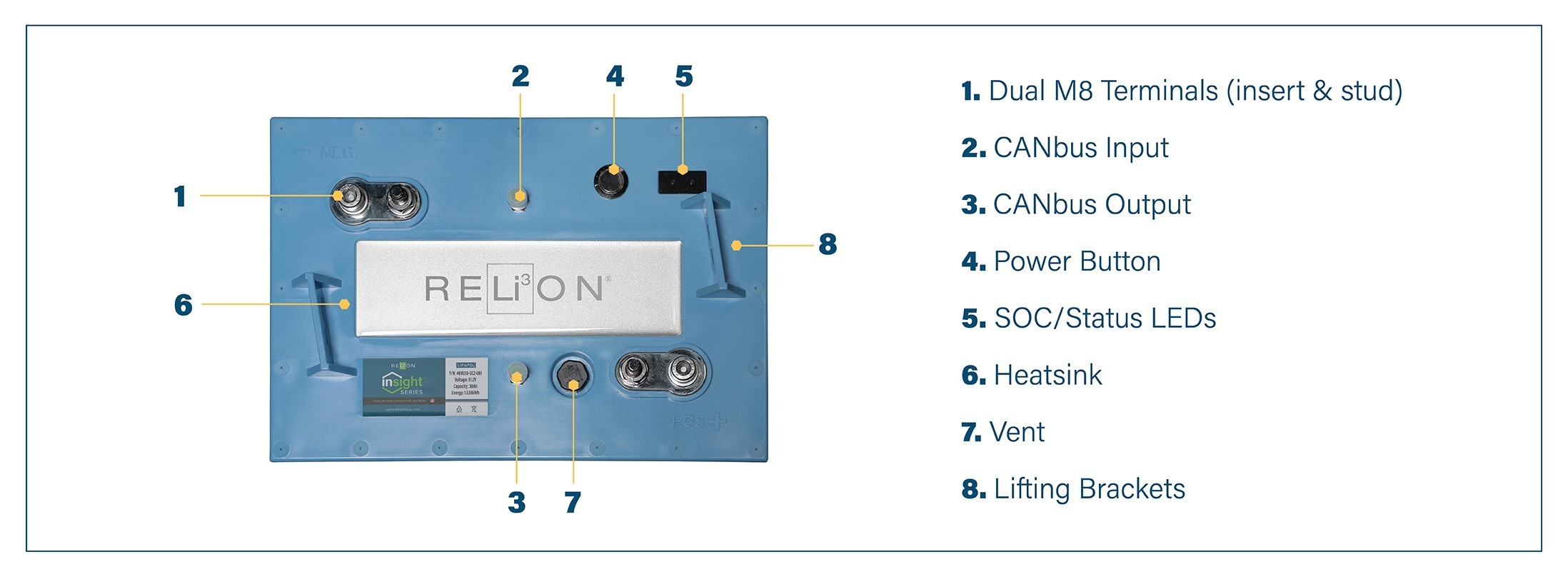

In Sight Callout
